Once the load cell measures the torque, it then amplifies the signal and converts it to digital form for further processing. High-quality transducers have advanced signal processing that minimizes noise and ensures real-time, accurate measurements

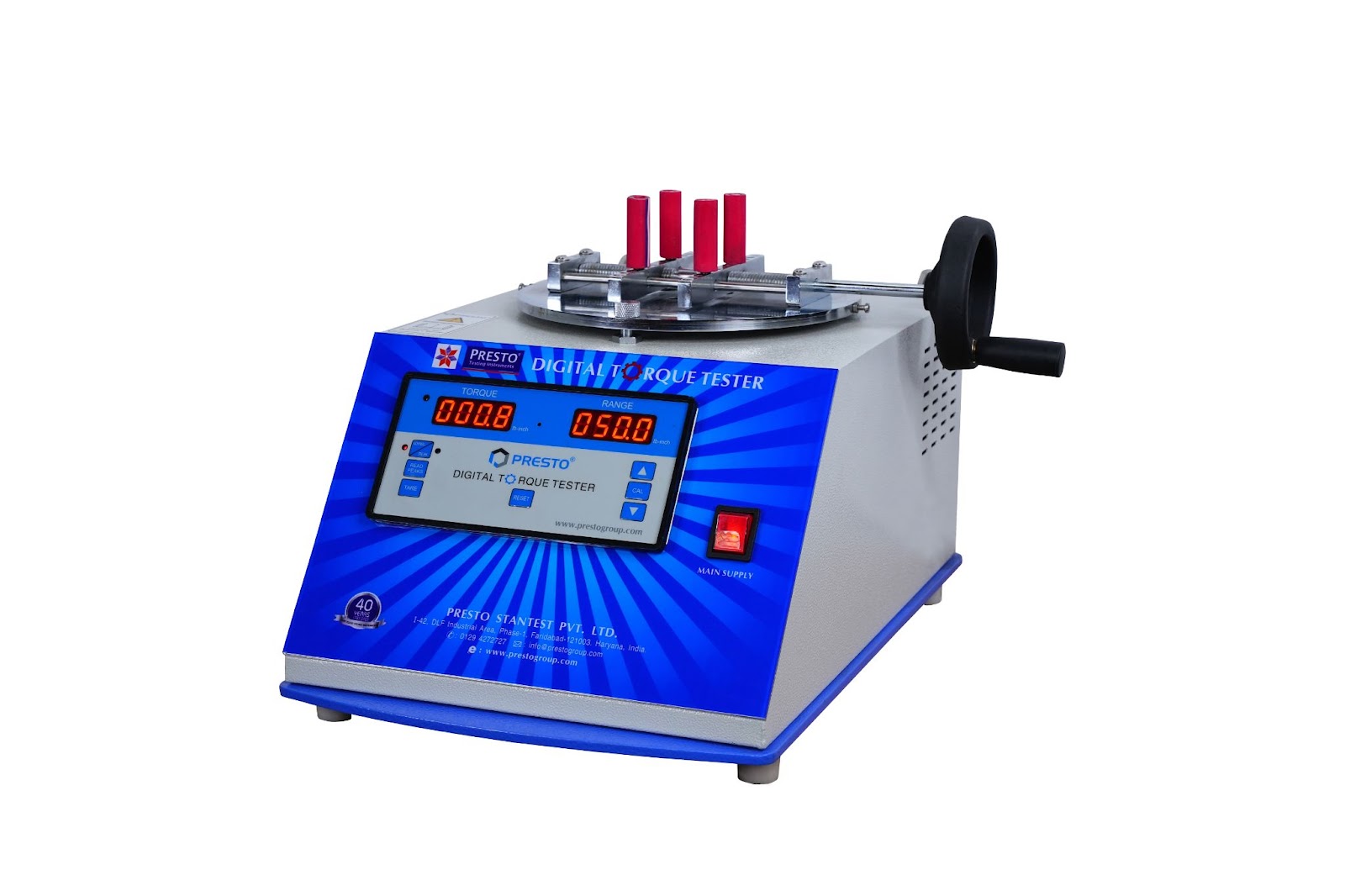

A bottle torque tester is a specified testing instrument used to measure the torque that i sussed to open or close a bottle cap. The bottle burst tester is so much in use in industries such as Beverage, pharmaceutical and cosmetics. It ensures that, when the cap is put in during capping, it remains closed and, when opening by consumers, is easy without much force applied. The working of the torque tester includes applying controlled rotational force on the bottle cap so that up to the opening torque, it reaches the specified value of the closure.
1. Load Cell: The Heart of Torque Measurement
The load cell is called the heart due to its ability to convert mechanical torqu into the electrical signal.
Key Types
Strain Gauge Load Cells: The most common type, measure the deformation caused by torque, converting this into an electrical signal. These types typically have very high accuracy, ranging from ±0.1% of full scale.
Piezoelectric Load Cells: Ideal for dynamic applications and produce a voltage response to a force. These give fast, accurate measurements.
Capacity: Load cells come in various ranges (e.g., 0-50 Nm), tailored to your testing needs, ensuring measurements are within a specific torque range.
2. Torque Transducer: Signal Amplification and Conversion
Once the load cell measures the torque, it then amplifies the signal and converts it to digital form for further processing. High-quality transducers have advanced signal processing that minimizes noise and ensures real-time, accurate measurements
3. Rotating Motor and Control System
The task of the rotating motr is to apply regulated torque to the bottle cap.In more advanced bottle burst testers, DC brushless motors or stepper motors are used to provide a smooth, precise application of torque.
Major Motor Features:
Closed-Loop Control: ensures that torque is applied consistently by adjusting the motor speed in real-time on the basis of feedback received from the load cell.
Servo Motors: These are found in high-end bottle torque testers and offer both high torque and precise control, making them perfect for demanding applications.
4. Fixtures and Clamping Mechanisms
The clamping mechanism holds the bottle firmly in place during testing. Appropriate fixtures prevent bottle slippage, thus allowing for accurate measurements.
Types:
Spring-loaded clamps: Provide consistent, non-damaging clamping for regular tests.
Pneumatic clamps: Used in high-throughput environments, these offer fast, secure clamping with minimal human involvement.
5. Data Acquisition and Integration with Software
The DAQ stores the torque values of the load cell and transducer. The current systems are upgradable with software for better inspection and online observation.
Features:
Real-time Data Processing. This offers quick insight into how torque is operating, thereby allowing immediate interventions if outliers occur.
Data Export: Most systems have an export to CSV, Excel, or PDF, which allows for ease of sharing results for reporting and archiving.
6. Feedback and Control Interface
The feedback and control interface allows the operators to adjust the bottle torque tester settings for the best performance. The most sophisticated systems offer touchscreen interfaces and automated test cycles. This allows flexibility and ease of use.
7. Calibration System
For accuracy, calibration needs to be performed at periodic intervals. The high-end bottle burst tester uses automated calibration systems. These ensure precision without any manual intervention. Calibration is done using reference devices so that the bottle cap torque tester remains within the defined limits of accuracy.

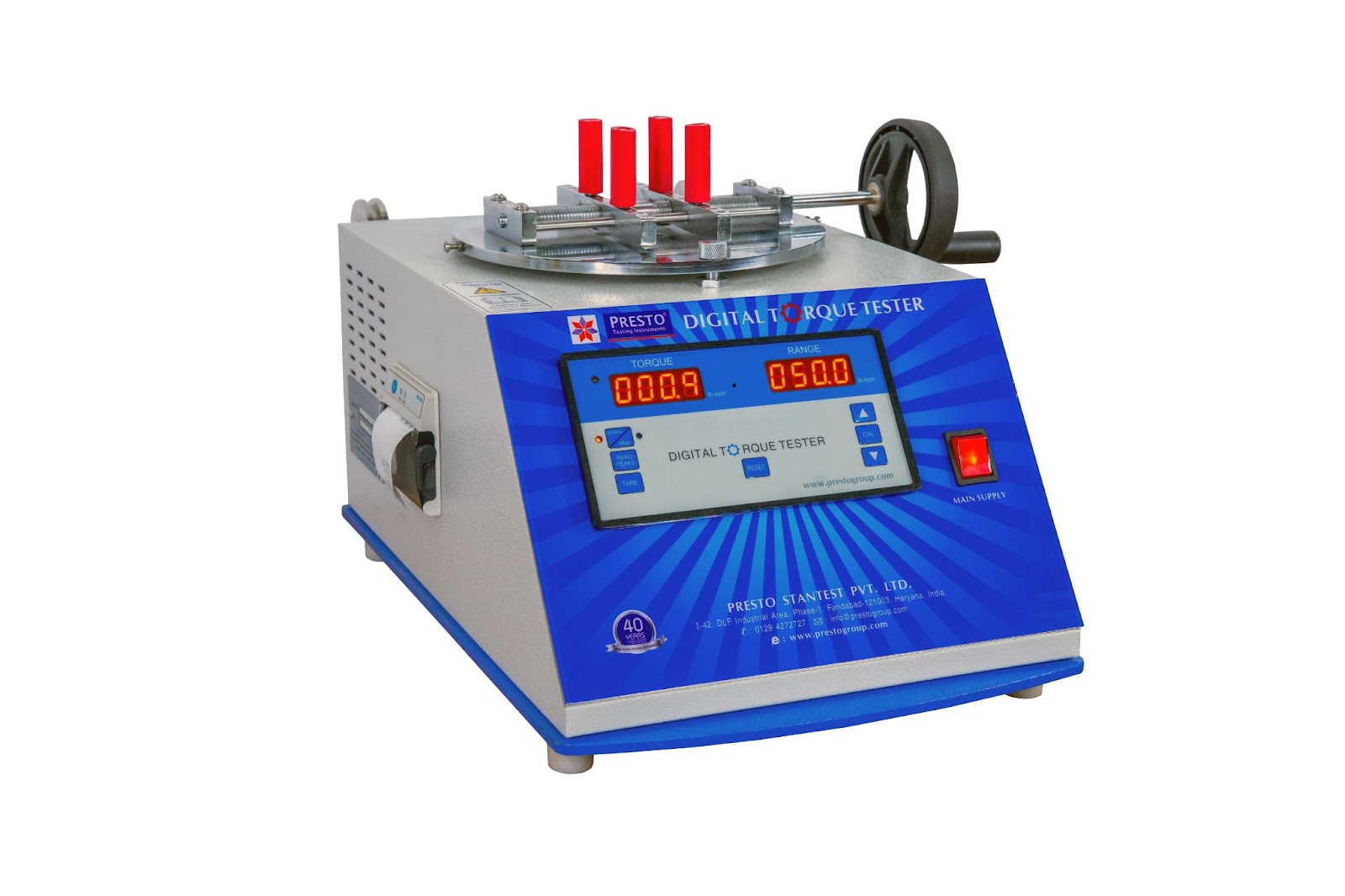

Models Available - Max. Torque Range :
20 lb-inch
25 lb-inch
50 lb-inch
100 lb-inch
Accuracy: ± 0.5 lb-Inch (with master weight)
Least Count/Resolution: 0.1 lb-inch / 0.1 kg.cm/0.01 Nm
Power: 220V, Single phase, 50 Hz
Display: Digital (LED)
Minimum Diameter for specimen holding: 30 mm
Maximum Diameter for specimen holding: 110 mm
Weights for Calibration: 10 lbs, 20 lbs
To understand how a bottle torque tester works, the basics of torque measurement mechanics have to be considered.
Torque, or T, is represented by the equation:
T= F x D
It actually applies rotational motion around the cap when a bottle torque tester is used. Then it measures the amount of force that would be necessary to acquire the movement, and then it detects the peak value of this force. The peak value of force will essentially actually correspond to the ability that the cap has to keep sealed under normal conditions or resist accidental opening.
The deformation of the material caused by the applied force is measured by the sensor, usually based on strain gauges or piezoelectric crystals. The electrical signal thus obtained is processed to yield the torque value. Therefore, the accuracy of such measurements is essential to ensure that bottles are properly sealed in production and that consumers can open bottles without difficulty.
Routine Calibration: A bottle cap torque tester is supposed to be calibrated based on a manufacturer's instructions. Calibration prevents the system from showing false values and reduces the chances of mismeasurements.
Clean the Tester: Dirt, oils, and all residues should not settle at one place, especially on rotating parts as well as load cells; hence, proper cleaning must be done at regular times using appropriate materials that are not harmful to the tester.
Check Mechanical Wear: Sensors, motors, or gears are mechanical parts. They tend to wear with age. Mechanical parts could be checked at regular times to prevent eventual problems affecting their performance.
Store Properly: If out of use, the bottle torque tester should be stored in a clean, dry room away from high temperatures or high humidity. This prolongs its life and ensures that measurements will remain true.
Understanding the significance of bottle torque testing and the scientific principles behind it can make a huge impact on the reliability and security of your packaging process. The correct bottle torque tester along with best practices and proper maintenance of your device will assure you that your products meet the highest possible standards of quality. Whether you are looking for a bottle torque tester or want to optimize your current system, an understanding of this tool and its applications will help you to be better prepared to make a more informed decision that will benefit your business for years to come.
