A vacuum leak tester is a tool that examines sealed containers by creating a vacuum environment and tests the holding capacity of the air pressure inside the container. In its usage, the manufacturers can precisely find out even the smallest leaks that might occur in the packaging.
Quality control is not a post-fact consideration of product packaging. Packaging is an essential part as the products must reach their destination without getting damaged. Of all these quality control equipment, the vacuum leak tester for bottles plays an important role in container packaging. If you are not yet aware of this equipment, don't worry, by the end of this blog, you will understand why a vacuum leak tester is something to be placed at the top of your testing and manufacturing list.
Further in this Blog, You will read about the need for vacuum leak testing and discuss its importance.
Vacuum leak testing is the safest method of leakage checking for sealed bottles and jars, besides other packaging solutions. Even minute leak points can lead to spillage and contamination in various products.
Testing for leaks in sealed packages helps manufacturers identify weaknesses or defects that may have consequences such as compromised quality or even product failure when being transported or stored.
Properly executed leak testing guarantees that every product within the batch is reliable, safe, and completely sealed—thus meeting the regulatory compliance requirements of those who will use it and the consumer's satisfaction.
A vacuum leak tester is a tool that examines sealed containers by creating a vacuum environment and tests the holding capacity of the air pressure inside the container. In its usage, the manufacturers can precisely find out even the smallest leaks that might occur in the packaging.
The process places the container, which can be a bottle, inside a vacuum chamber. Once sealed in this chamber, vacuum pressure is applied, leaks or ruptures of any nature will reduce air pressure in the container. Sensors in this tester will detect these leaks right away and signal the presence of a compromised product.
Although many different leak testers are available in the market, it is learned that the vacuum testing machine has proved to be one of the most efficient for bottling purposes. The apparatus works efficiently on three primary types of bottle materials - glass, plastic, and metal, thus being suitable both for a lab environment as well as a production environment.
VLT Digital Specifications:
Display: Digital
Vacuum adjustable up to – 900 Mb (600 mm-Hg.)
Chamber made of polished transparent PMMA (very rugged)
Least Count: 10 mm Hg
Power: 220V, Single phase, 50 Hz
Controls: Digital for pressure monitoring and timer
Timer: Digital preset up to 999 seconds (Changeable to Hrs:min: sec)
Material: Mild Steel/ Stainless Steel
2-stage vacuum and holding time setting
Accuracy: 0.5% of the measure
Delivered with vacuum generator
Customized Box with dimensions upon request
Finish: Powder-coated Havel Gray & Blue combination finish and bright chrome/zinc plating for a corrosion-resistant finish
Presto is the industry leader in vacuum leak testers. Experience of several years has transformed Presto into a strong name for high-quality testing equipment and up-to-date technology that brings accuracy, reliability, and efficiency.
Presto vacuum leak testers are designed with highly accurate engineering and are fully customized to your exact production line specifications. Easy to operate, low maintenance, and designed to stand up to a high volume of testing, Presto vacuum leak testers are an ideal addition to any laboratory or manufacturing facility.
Ensure the use of a Vacuum Leak Tester through a standard operating procedure for consistency with the best results. The SOP to work with the vacuum leak tester for bottles is as follows:
Step 1: Equipment Preparation
Ensure that the vacuum leak tester is clean, calibrated, and free from visible signs of deterioration.
Check if the source of power is stable and well-connected to the required electrical supply.
The vacuum chamber must be dust-free and clean. Clean whenever necessary before the start of the test run.
Step 2: Setup
Vacuum level may be adjusted to product requirements. Typically would have a value between -0.5 to -0.8 bar
The sensitivity of leak detection may be matched with the type of container and the expected leakage level (plastic, glass, metal).
Step 3: Chamber Loading

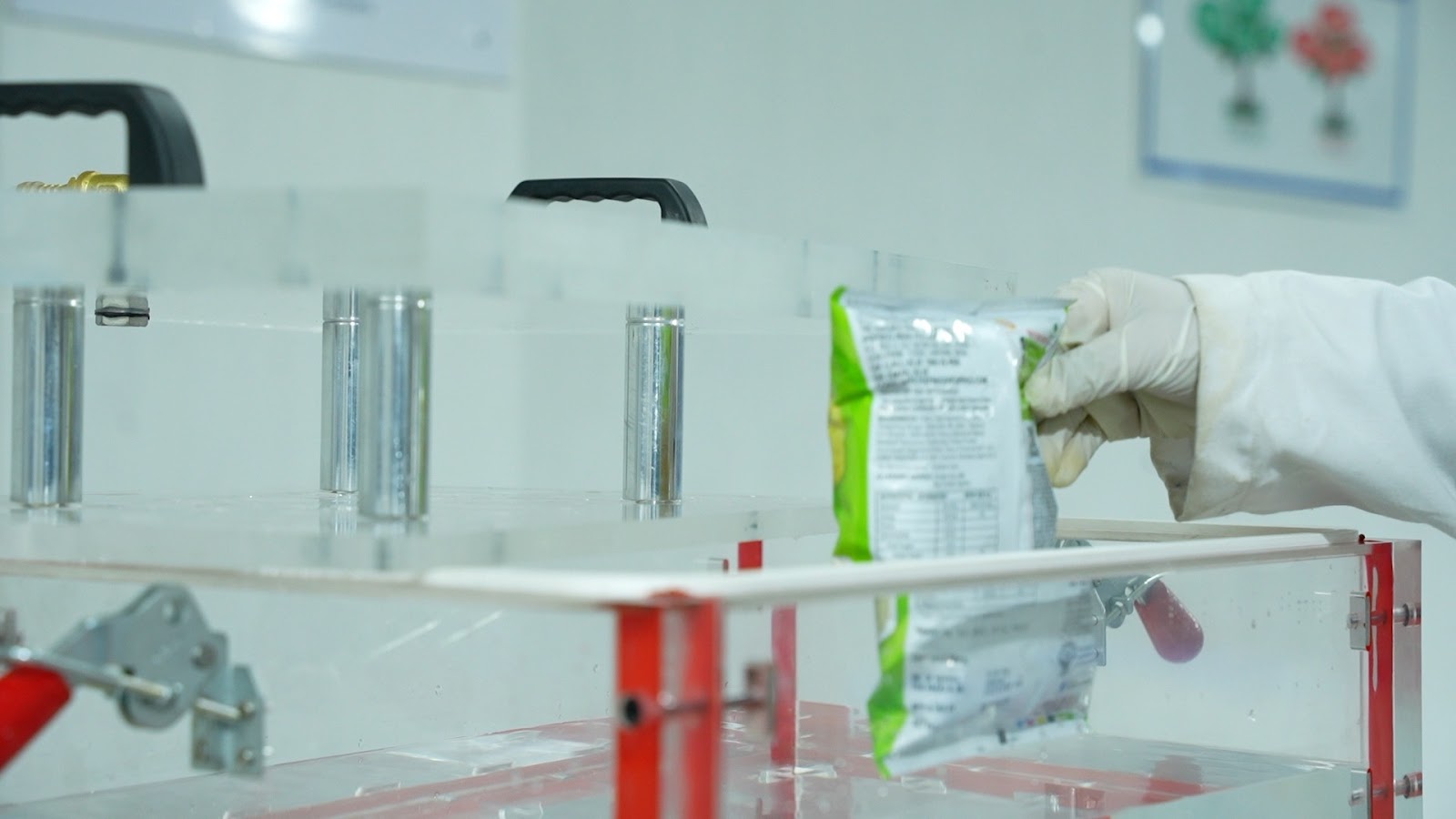

Place the bottle or container that you wish to test within the vacuum chamber.
Put the product inside the chamber in a well-secured manner so that it would not budge during the testing cycle.
Step 4: Beginning the Test Cycle
Switch on the vacuum pump so that the chamber is achieved at the required pressure.
The test cycle might usually run for 5-10 seconds in most cases, depending upon the machine settings and the size of the bottle.
The drop in pressure will be automatically monitored by the machine. The product passed the test if there is stabilization of the pressure. If there is a drop, then leakage has occurred.
Step 5: Interpret Results and Act

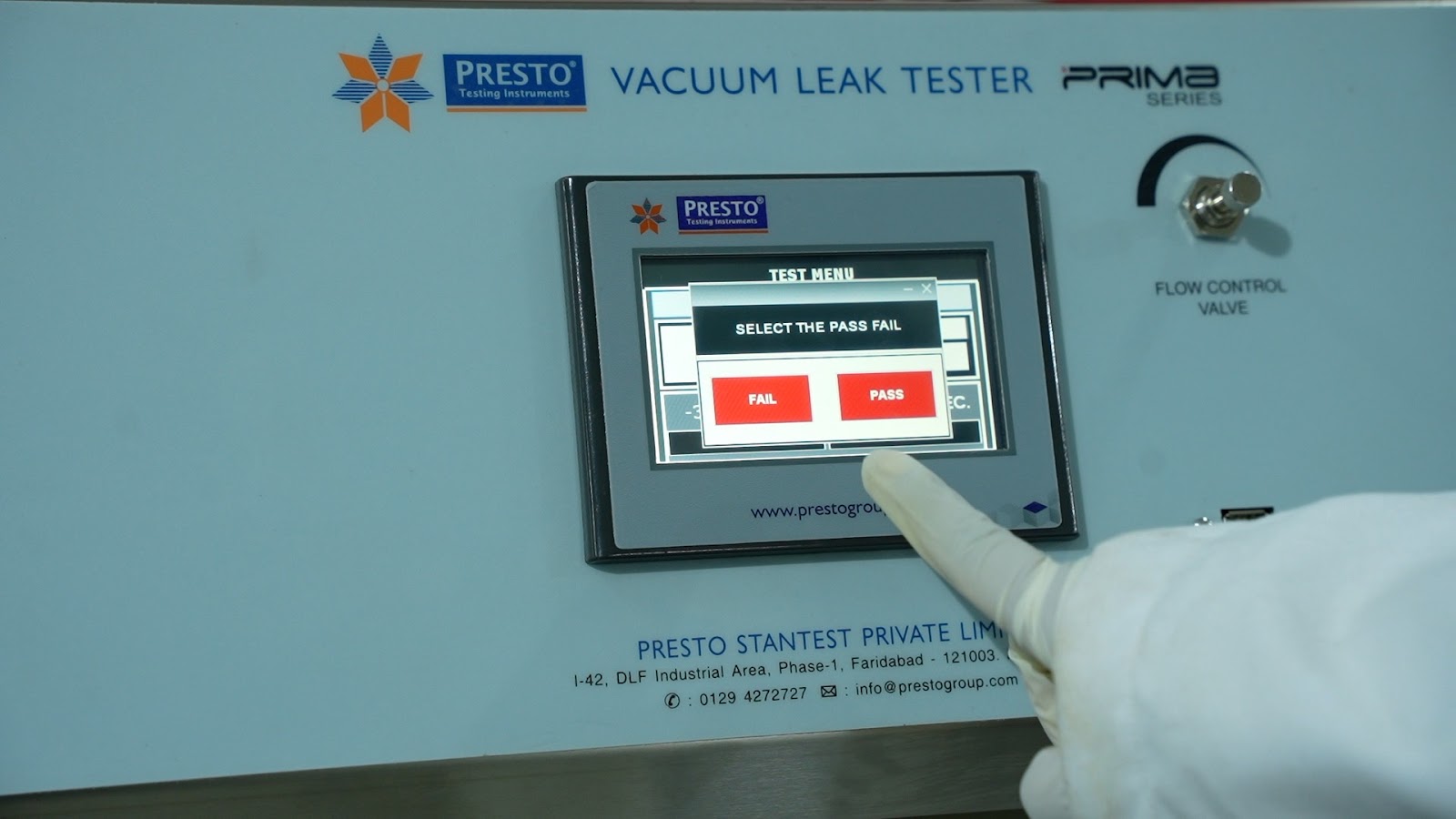

Check out the results displayed on the digital interface of the machine. In case of leakage detection, the tester often provides a visual or audible warning.
Remove defective products from the line of production and identify the source of leakage.
Make a record of outcomes for quality control documentation and traceability. Monitor pass and failure percentages for product quality.
Step 6: Cleanup After Testing
Clean the vacuum chamber and remove all debris or residue that remains after testing.
Make a quick calibration check to ensure the accuracy of the machine for the next cycle of testing.
To understand how a vacuum leak tester features in any procedure meant for quality control, let's consider what a vacuum leak tester for bottles does in a process:
Pre-production Quality Test
Before actual production, it would be wise to test the materials used for packaging and seals. The vacuum leak tester would indicate if the selected materials were pressure-tested; they can withstand some amount of pressure and the vacuum seal would hold well if used with normal operating conditions.
Testing during Production
Leaked goods need to be detected during the production process, and all packaged goods should be leak-detected. The bottle vacuum leak tester can be used in regular 'sample testing' of products coming off the production line thus offering consistency and rejecting defects.
Inspection after Production
Once sealed, they check them again for developed leaks after filling and sealing. This would eliminate flawed bottles or containers from the mix thus reducing the possibility of receiving faulty goods back from consumers.
Act Smart Today
A leak bottle vacuum testing machine is more than an instrument it's an investment in your product quality and your company's bottom line. Since leak detection can occur early in the production cycle, waste decreases, and so does the chance for severe customer complaints or expensive product recalls. Its efficiency in streamlining the testing process to ensure surefire, tight seals makes the vacuum leak tester an indispensable part of any laboratory or manufacturing facility.
Looking to upgrade the quality of your airtight package every time? Contact us for more information like vacuum leak tester price, Technical Specifications, or a quote. Look no further than Presto for high-grade, reliable vacuum leak testers at highly competitive prices. Buy a vacuum leak tester today and start enjoying top-quality control.
